Agusta AW109 Power: Specs , pictures and video.

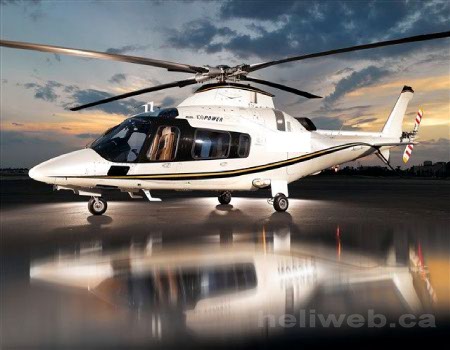

aw109power

Rotor Diameter:    36ft 1 in. (11 m)
Fuselage Length:
 37ft 6.78in. (11.45m)
Overall Length:     42ft 9.18in. (13.035m)
Powerplant:  2 x 640shp  P&W 206C  or  670shp Turbomeca Arrius 2K1
Max Take-Off Weight:  6284lbs  (2850kg)
Max Seating: 8
Max Cruise:  156kts
Range:  521nm  (965km)

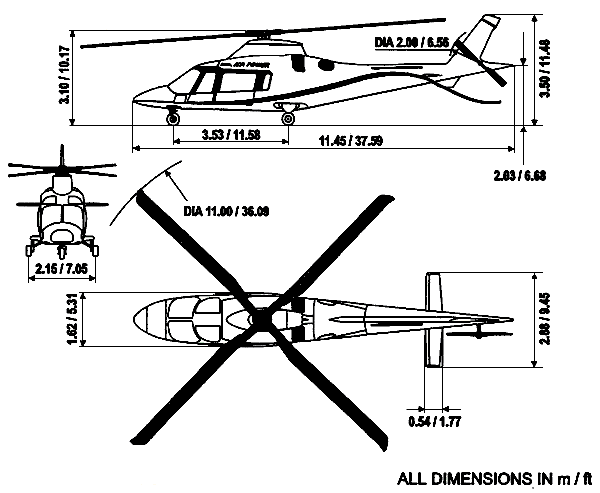

aw109p data

aw109p cabin
